Metal Panel

5-V Thru Fastened Panel

The 5-V Thru Fastened Panel is one of the most reliable and traditional profiles for residential and agricultural roofing. Fastened directly through the panel, it provides strength, weather protection, and a classic design that has been trusted for decades. With versatile installation options, it can be applied over solid substrate or open framing, making it suitable for a wide range of projects.

Panel Details:

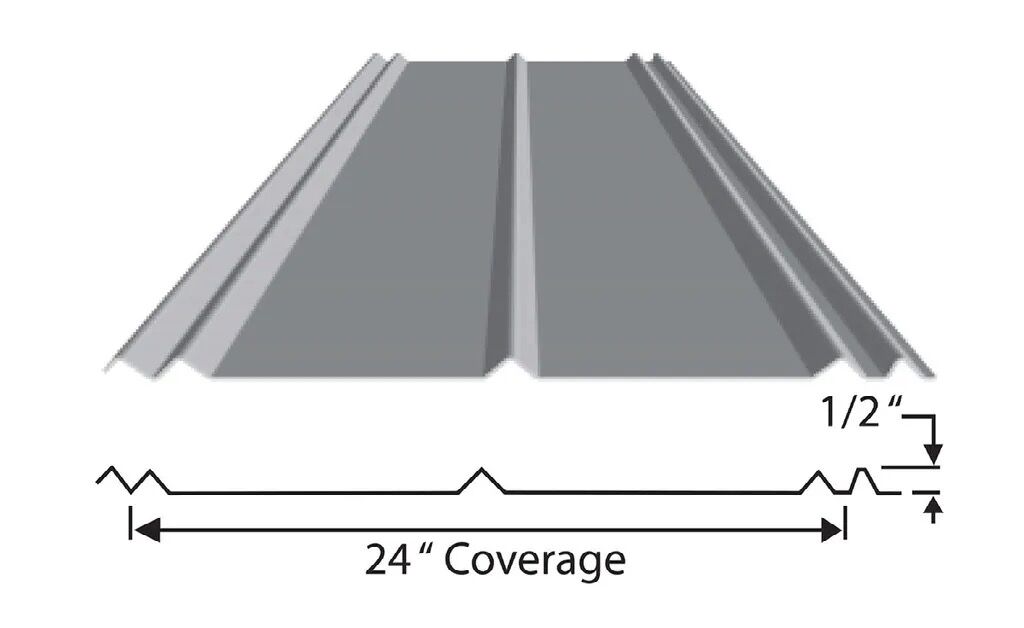

• 24” Total Coverage – 1/2” Rib Height

• 29 & 26 Gauge Available (also in Galvalume and G90)

• 23 Sherwin-Williams® Colors in WeatherXL™ Finish

• Limited Lifetime Paint Warranty System

• Exposed Fasteners

• Anti-Siphon Sidelap Design for weather tightness

• Suggested Minimum Roof Slope: 3:12

• For Agricultural & Residential Use

• Applies over Open Framing or Solid Substrates

• Siliconized Polyester (40-year warranty)
